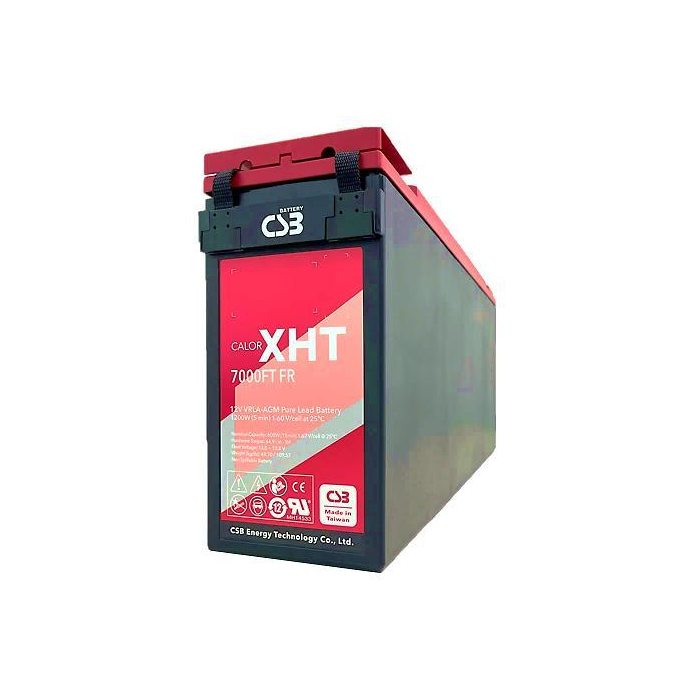

CSB XHT7000FT 12V Front Terminal VRLA Battery
The CSB XHT7000FT is a 12V front terminal valve-regulated lead-acid battery in the XHT pure lead high-temperature series, designed for data center uninterruptible power supplies. It delivers 7000W at the 5-minute rate, has a design life of over 12 years at 25°C float charge, and its case is flame-retardant to UL 94-V0.
Taobao store
WeChat procurement
Product Features
- Valve Regulated Lead Acid (VRLA) Battery, Maintenance-Free
- Absorbent Glass Mat (AGM) with Exclusive Grid for 99% Gas Recombination.
- Pure Lead Construction and Catalist 2X Proprietary Additive Technology
- Constructed with High-Impact Resistant ABS plastic (UL 94-V0)
- Designed for High-Rate and High- Temperature standby applications
- Optimized for Harsh Environments with Extended Service Life
- Built in Accordance with IEC 60896-21/22:2004, UL1989(MH14533) and UL 1973 Recognized (MH66728)
Application Scenarios
- UPS backup for high-temperature data centers
- UPS backup for outdoor cabinets
- Backup for mission-critical equipment in harsh environments
- Backup power for high-temperature industrial plants
- Emergency power for remote unmanned sites
- Short-duration high-rate discharge backup duty
Product parameters
- Model：XHT7000FT
- Voltage：12 Vdc
- Nominal Capacity：7000W @ 5min-rate
- Watts per Cell：1766.00 (30-Sec 1.67 VPC @ 25°C)
- Watts per Cell：1144.17 (5-Min 1.67 VPC @ 25°C)
- Watts per Cell：642.50 (15-Min 1.67 VPC @ 25°C)
- Max. Charge Current：58.30 A
- Max. Discharge Current：1550 (5sec)
- Short Circuit Current：4132 A
- Internal Resistance：2.01 mΩ
- Terminal Type：I2 thread lead alloy terminal to accept M6 bolt
- Terminal Torque：51.7±10.3 Kgf·cm / 44.9±9.0 Lbf·in / 5.1±1.0 N·m
- Container Material：Flame-retardant PC-ABS (UL 94-V0)
- Weight：50.9 / 112.21 kg / lb.
- Length (L)：558.0±2.5 / 21.97±0.10 mm / in
- Width (W)：126.0±1.5 / 4.96±0.06 mm / in
- Height (H)：257.0±2.5 / 10.11±0.10 mm / in
- Design Life：Up to 12+ years in standby service at 25°C; Up to 10 years in standby service at 35°C
- Float Charging Voltage：13.5 - 13.8 Vdc/battery
- Equalizing Charging Voltage：14.4 - 15.0 Vdc/battery
- Operating Temperature：discharge -40°C to 65°C; charge/storage -40°C to 65°C
Product details
The CSB XHT7000FT is a 12V front terminal valve-regulated lead-acid battery belonging to the XHT pure lead high-temperature VRLA battery series. This series is designed for mission-critical power in harsh environments, with the official application area being data center uninterruptible power supplies. The battery uses absorbed glass mat (AGM) separators and a dedicated grid, achieves a 99% gas recombination rate, and features a pure lead construction with Catalist 2X proprietary additive technology, with a nominal capacity of 7000W (5-minute rate, 25°C, 9.60V per unit).
In terms of power parameters, the XHT7000FT at 25°C and 1.67VPC delivers 1766.00 W/cell at 30 seconds, 1144.17 W/cell at 5 minutes, and 642.50 W/cell at 15 minutes. The battery's maximum charge current is 58.30 A, maximum discharge current is 1550 (5 seconds), short-circuit current is 4132 A, and internal resistance is 2.01 mΩ. Float charge voltage is 13.5 to 13.8 Vdc/battery (25°C), and equalizing charge voltage is 14.4 to 15.0 Vdc/battery (25°C).
Structurally, the battery uses an I2 threaded lead alloy terminal that accepts an M6 bolt, with a terminal torque of 51.7±10.3 Kgf∙cm, 44.9±9.0 Lbf∙in, or 5.1±1.0 N∙m. The case material is PC-ABS flame-retardant material, compliant with UL 94-V0. Dimensions are 558.0±2.5 mm in length, 126.0±1.5 mm in width, and 257.0±2.5 mm in height, with a weight of 50.9 kg.
In terms of environmental adaptability, the XHT7000FT has a discharge operating temperature of -40°C to 65°C, and both charge and storage operating temperatures are also -40°C to 65°C. Design life is over 12 years at 25°C float charge, and up to 10 years at 35°C float charge. For self-discharge, it is less than 10% after 90 days at 25°C, can be stored for up to 6 months, and with equalizing charge can be stored for up to 10 months; it must be fully charged before use, and if storage temperature exceeds 25°C it should be charged sooner.
This product is a maintenance-free valve-regulated lead-acid battery, using high-impact ABS plastic, manufactured in accordance with IEC 60896-21/22:2004, UL1989 (MH14533), and UL 1973 Recognized (MH66728), suitable for high-rate and high-temperature standby applications, and optimized for extended service life in harsh environments.
