CSB XPL Series 12V Large-Capacity Pure Lead Battery

CSB Energy Technology XPL Series is a 12V top terminal VRLA-AGM large-capacity pure lead battery, designed for long-duration standby applications requiring large batteries

Model	Specification	Weight	Description

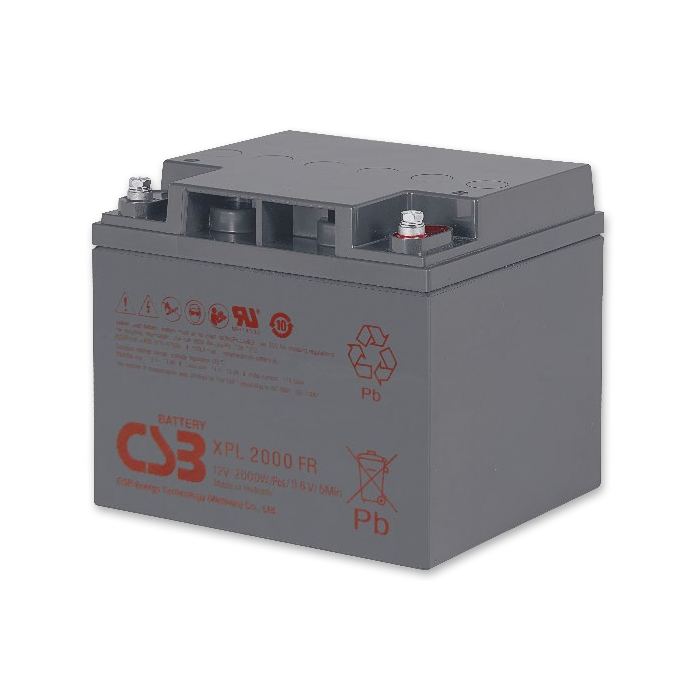

XPL2000	12V 2000W	13.58 kg	The CSB XPL2000 is a 12V valve-regulated sealed lead-acid battery in the XPL series, using pure lead and AGM technology, with 2000W at the 5-minute rate, suitable for long-duration standby scenarios such as data center uninterruptible power supplies, with a design float life of up to 10 years.

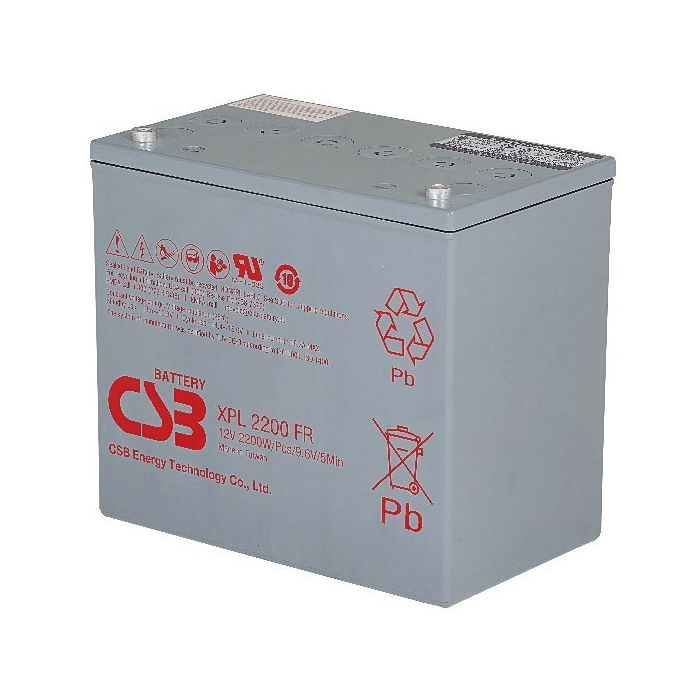

XPL2200	12V 2200W	16.65 kg	The CSB XPL2200 is a 12V valve-regulated sealed lead-acid battery in the XPL series, using pure lead and AGM technology, with a nominal capacity of 2200W @5min-rate, suitable for long-duration standby power scenarios such as data center UPS.

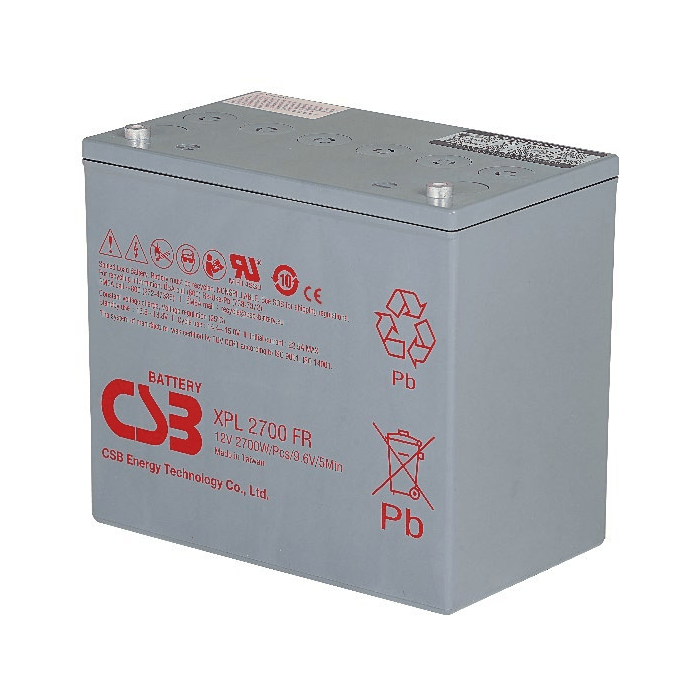

XPL2700	12V 2700W	18.52 kg	The CSB XPL2700 is a 12V valve-regulated sealed lead-acid battery in the XPL series, featuring AGM and pure lead construction, with a nominal capacity of 2700W @5min-rate, suitable for long-duration standby power applications such as data center UPS, with long design float life.

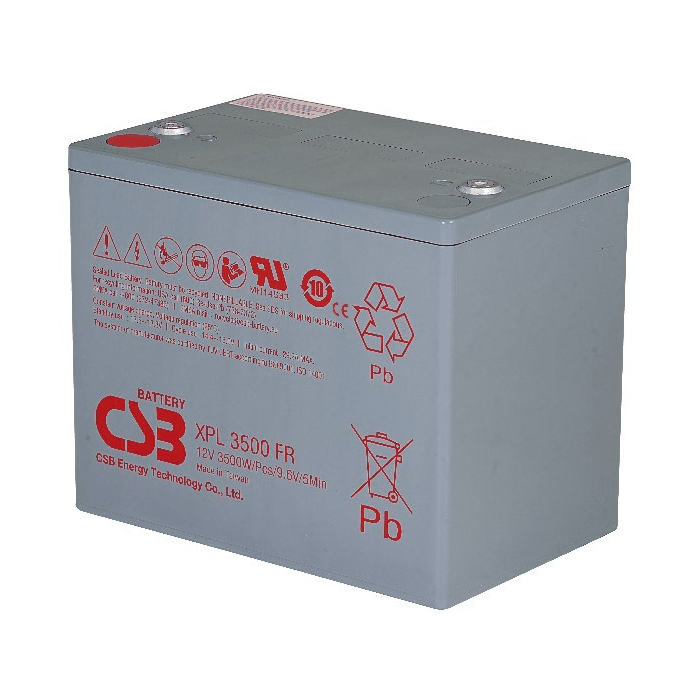

XPL3500	12V 3500W	25.80 kg	The CSB XPL3500 is a 12V valve-regulated sealed lead-acid battery in the XPL series, using pure lead and AGM technology, with a nominal capacity of 3500W at the 5-minute rate, suitable for long-duration standby scenarios such as data center uninterruptible power supplies, with a design float life of up to 10 years.

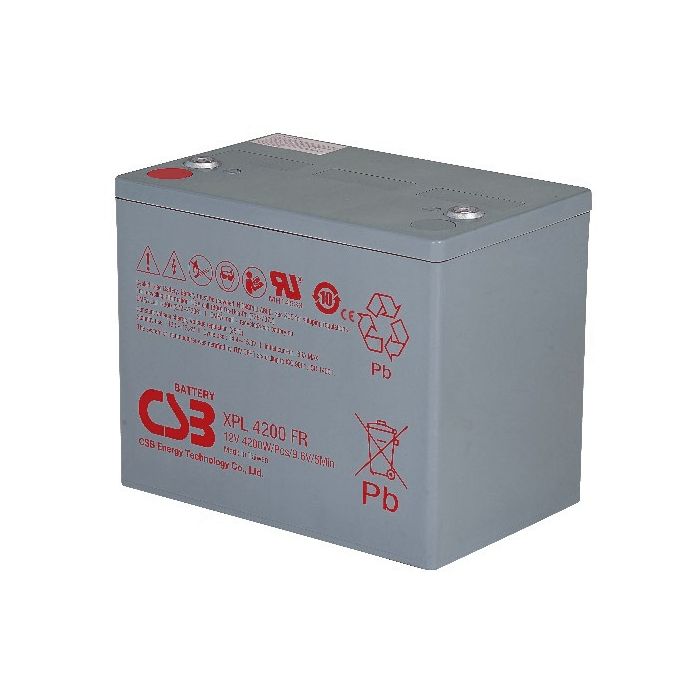

XPL4200	12V 4200W	28.20 kg	The CSB XPL4200 is a 12V valve-regulated sealed lead-acid battery in the XPL series, using pure lead and AGM technology for float standby applications such as data center UPS. It delivers 4200W at the 5-minute rate with a design life of up to 10 years.

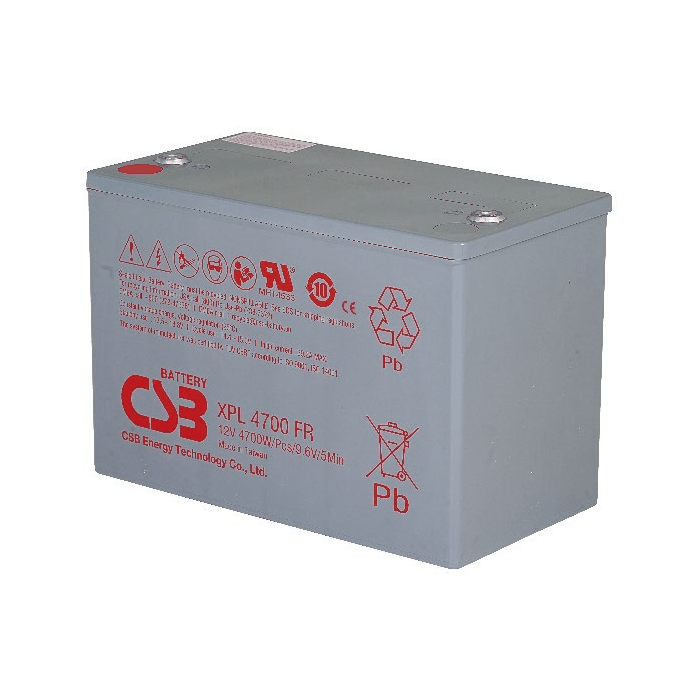

XPL4700	12V 4700W	33.00 kg	The CSB XPL4700 is a 12V high-capacity pure lead valve-regulated sealed lead-acid battery featuring AGM technology, designed for long-duration standby power such as data center UPS. It delivers 4700W at the 5-minute rate and offers a design float life of up to 10 years.

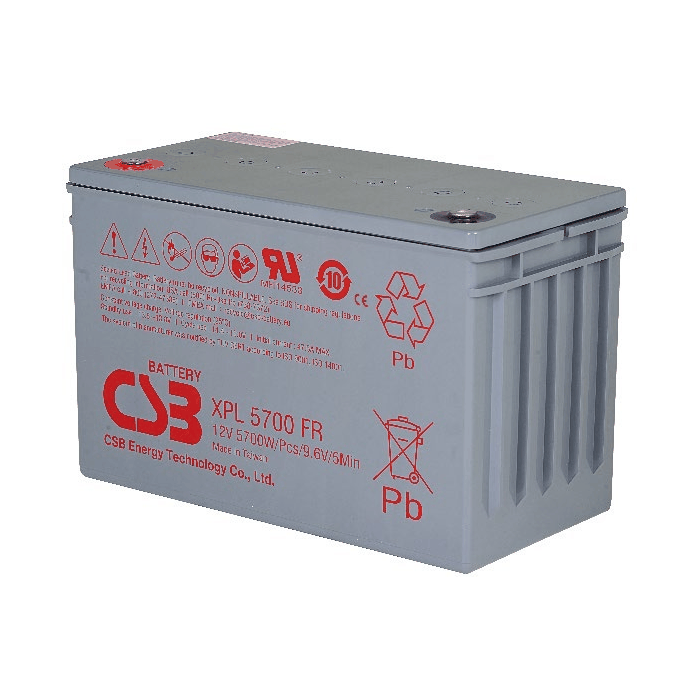

XPL5700	12V 5700W	36.90 kg	The CSB XPL Series XPL5700 is a 12V valve-regulated sealed lead-acid battery featuring AGM technology and a pure lead construction, with a nominal capacity of 5700W@5min-rate, suitable for long-duration standby power scenarios such as data center UPS, with a design float life of up to 10 years.

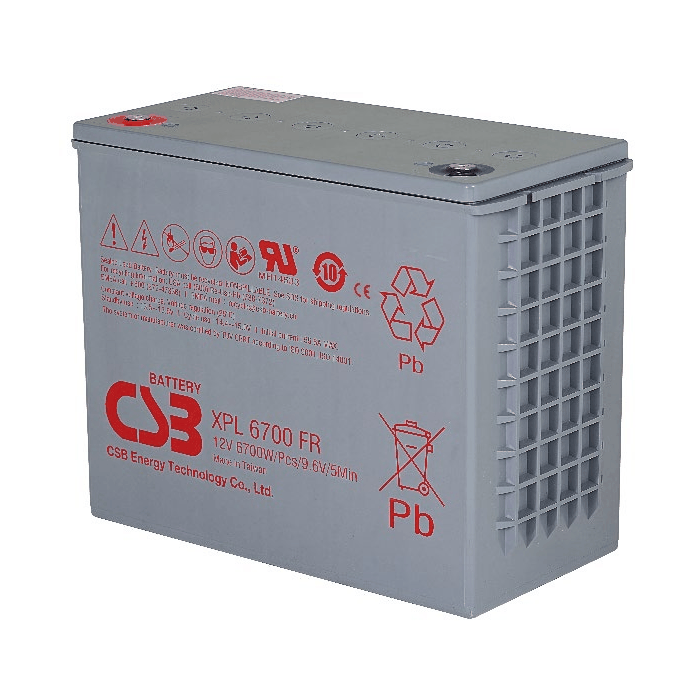

XPL6700	12V 6700W	47.90 kg	The CSB XPL6700 is a 12V valve-regulated sealed lead-acid battery in the XPL series, using pure lead and AGM technology with a 5-minute rate nominal capacity of 6700W, suitable for long-duration standby applications such as data center UPS.
