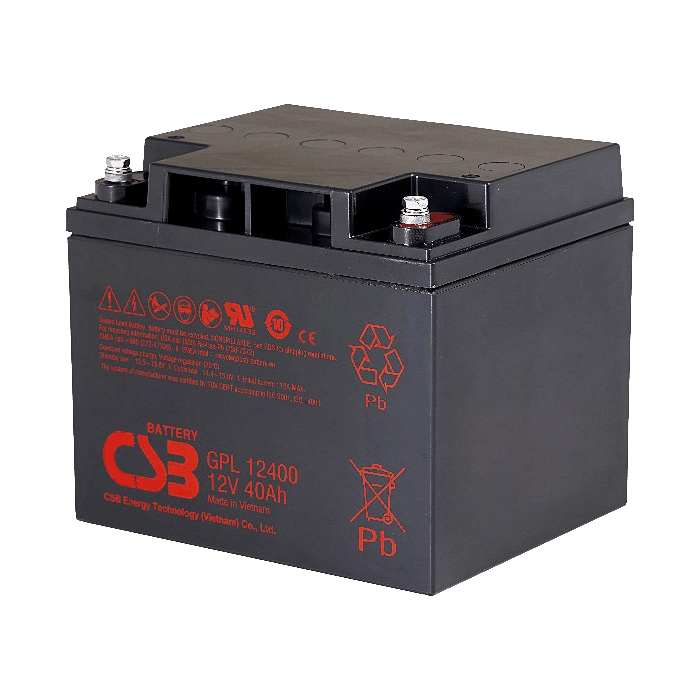

CSB GPL12400 12V 40Ah Valve-Regulated Sealed Lead-Acid Battery
The CSB GPL12400 is a 12V general-purpose valve-regulated sealed lead-acid battery using AGM technology, with a nominal capacity of 40Ah (20hr-rate) and a design float life of up to 10 years, suitable for float standby power applications and compliant with IEC 61056-1/2:2012.
Taobao store
WeChat procurement
Product Features
- Valve Regulated Lead Acid (VRLA) Battery
- Maintenance-Free, Absorbent Glass Mat (AGM) Technology for Efficient Gas Recombination of up to 99%
- Pure Lead Construction and Proprietary Elements
- Designed for Float Service Standby Power Applications
- Built in Accordance with IEC 61056-1/2:2012 and UL1989 Recognized (MH14533)
Application Scenarios
- Security alarm panel backup power
- Emergency lighting fixtures and exit signs
- Medical monitors and infusion pumps backup
- Access control and building intercom systems
- Fire alarm and linkage control panels
- Small electronic instruments and test equipment
Product parameters
- Model：GPL12400
- Voltage：12 Vdc
- Nominal Capacity：40 Ah @20hr-rate
- Ah Capacity：40.32 (8-Hr 1.75 VPC @ 25°C)
- Ah Capacity：44.40 (20-Hr 1.75 VPC @ 25°C)
- Ah Capacity：39.60 (8-Hr 1.80 VPC @ 25°C)
- Max. Charge Current：12.00 A
- Max. Discharge Current：400 A
- Short Circuit Current：1182 A
- Internal Resistance：8.5 mΩ
- Terminal Type：I2 thread lead alloy terminal to accept M6 bolt
- Terminal Torque：51.7±10.3 Kgf·cm / 44.9±9.0 Lbf·in / 5.10±1.0 N·m
- Container Material：ABS (UL 94-HB) standard, flame-retardant (94-V0) available upon request
- Weight：12.92 / 28.48 kg / lb.
- Length (L)：197.0±2.0 / 7.76±0.08 mm / in
- Width (W)：165.0±2.0 / 6.50±0.08 mm / in
- Height (H)：170.4±2.0 / 6.71±0.08 mm / in
- Design Life：Up to 10 years in standby service at 25°C; Eurobat (20°C): 10/12 years, Long Life
- Float Charging Voltage：13.5 - 13.8 Vdc/battery
- Equalizing Charging Voltage：14.4 - 15.0 Vdc/battery
- Operating Temperature：discharge -15°C to 50°C; charge/storage -15°C to 40°C
Product details
The CSB GPL12400 belongs to the GPL series, the long-life version of the GP series, intended for general-purpose float standby power applications. It is a 12V valve-regulated sealed lead-acid battery using absorbed glass mat (AGM) technology, with a gas recombination efficiency of up to 99%, and is a maintenance-free design. The battery uses a pure lead construction, is manufactured to IEC 61056-1/2:2012, and is recognized under UL1989 (MH14533).
In terms of capacity, the GPL12400 has a nominal capacity of 40Ah (1.75 VPC @25°C, 20hr-rate). At 25°C, the 8-hour rate 1.75 VPC capacity is 40.32Ah, the 20-hour rate 1.75 VPC capacity is 44.40Ah, and the 8-hour rate 1.80 VPC capacity is 39.60Ah. The battery's maximum charge current is 12.00A, maximum discharge current is 400A, short-circuit current is 1182A, and internal resistance is 8.5 mΩ.
In terms of dimensions and terminals, the GPL12400 is 197.0±2.0 mm long, 165.0±2.0 mm wide, and 170.4±2.0 mm high, with a weight of 12.92 kg. The terminal is an I2 threaded lead alloy terminal that accepts an M6 bolt, with a terminal torque of 51.7±10.3 Kgf·cm, i.e. 44.9±9.0 Lbf·in or 5.10±1.0 N·m. The case material is ABS (UL 94-HB), and a flame-retardant 94-V0 version is also available on request.
In terms of charging and operating conditions, at 25°C the float charge voltage is 13.5 to 13.8 Vdc/battery, and the equalizing charge voltage is 14.4 to 15.0 Vdc/battery. The nominal operating temperature is 25°C, discharge can be carried out from -15°C to 50°C, and charging and storage from -15°C to 40°C. Self-discharge is less than 10% after 90 days, storage is possible for up to 6 months at 25°C, a full charge is required before use, and charging should be done earlier when the storage temperature is above 25°C.
The GPL12400 has a design life of up to 10 years under float service at 25°C, and a 10/12-year long life under the Eurobat 20°C standard. It is suitable for float standby power applications, meeting general-purpose standby power needs with its long-life and maintenance-free characteristics.
