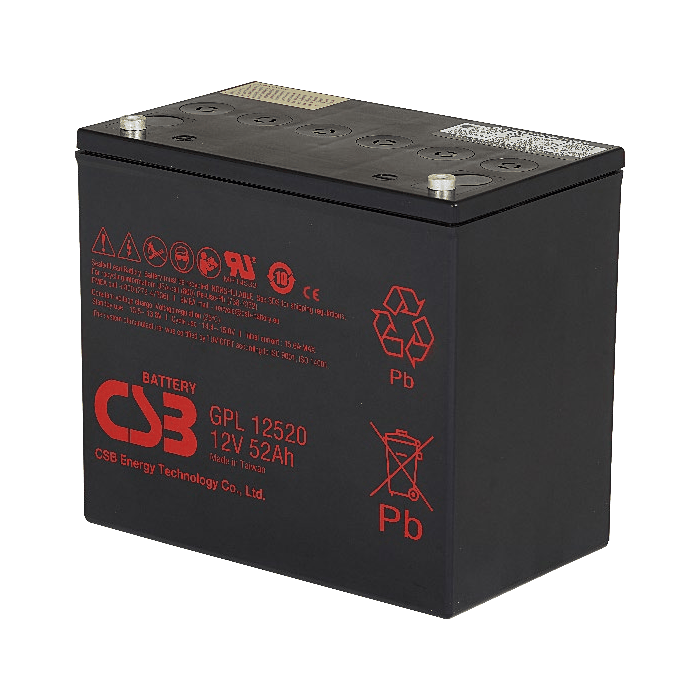

CSB GPL12520 12V 52Ah Valve-Regulated Sealed Lead-Acid Battery
The CSB GPL12520 is a GPL series 12V 52Ah valve-regulated sealed lead-acid battery featuring AGM technology and pure lead construction, suitable for general purpose float standby power. Design life reaches up to 10 years in float service at 25°C; the case is PP (UL 94-HB), and the terminal is an I2 threaded lead alloy terminal accepting an M6 bolt.
Taobao store
WeChat procurement
Product Features
- Valve Regulated Lead Acid (VRLA) Battery
- Maintenance-Free, Absorbent Glass Mat (AGM) Technology for Efficient Gas Recombination of up to 99%
- Pure Lead Construction and Proprietary Elements
- Designed for Float Service Standby Power Applications
- Built in Accordance with IEC 60896-21/22:2004 and UL1989 Recognized (MH14533)
Application Scenarios
- Security alarm panel backup power
- Emergency lighting fixtures and exit signs
- Medical monitors and infusion pumps backup
- Access control and building intercom systems
- Fire alarm and linkage control panels
- Small electronic instruments and test equipment
Product parameters
- Model：GPL12520
- Voltage：12 Vdc
- Nominal Capacity：52 Ah @20hr-rate
- Ah Capacity：49.36 (8-Hr 1.75 VPC @ 25°C)
- Ah Capacity：52.00 (20-Hr 1.75 VPC @ 25°C)
- Ah Capacity：48.32 (8-Hr 1.80 VPC @ 25°C)
- Max. Charge Current：15.60 A
- Max. Discharge Current：500 A
- Short Circuit Current：1485 A
- Internal Resistance：5.1 mΩ
- Terminal Type：I2 thread lead alloy terminal to accept M6 bolt
- Terminal Torque：51.7±10.3 Kgf·cm / 44.9±9.0 Lbf·in / 5.10±1.0 N·m
- Container Material：PP (UL 94-HB) standard, flame-retardant (94-V0) available upon request
- Weight：17.80 / 39.23 kg / lb.
- Length (L)：228.0±2.5 / 8.98±0.10 mm / in
- Width (W)：138.4±1.5 / 5.45±0.06 mm / in
- Height (H)：206.3±2.5 / 8.12±0.10 mm / in
- Design Life：Up to 10 years in standby service at 25°C; Eurobat (20°C): >12 years, Very Long Life
- Float Charging Voltage：13.5 - 13.8 Vdc/battery
- Equalizing Charging Voltage：14.4 - 15.0 Vdc/battery
- Operating Temperature：discharge -15°C to 50°C; charge/storage -15°C to 40°C
Product details
The CSB GPL12520 is a 12V valve-regulated sealed lead-acid battery belonging to the GPL series, with a product type of 12V Top Terminal VRLA-AGM. This series is the long life version of the GP series, intended for general purpose float standby power applications, with a design life of up to 10 years in float service at 25°C, meeting the Eurobat long life classification of greater than 12 years at 20°C.
In terms of capacity, the GPL12520 has a nominal capacity of 52 Ah (20-hour rate, 1.75 VPC, 25°C). At the 8-hour rate, 1.75 VPC, 25°C, capacity is 49.36 Ah; at the 8-hour rate, 1.80 VPC, 25°C, capacity is 48.32 Ah. The battery's maximum charge current is 15.60 A, maximum discharge current is 500 A, short-circuit current is 1485 A, and internal resistance is 5.1 mΩ.
The battery uses valve-regulated sealed lead-acid construction and AGM technology, with gas recombination efficiency up to 99%, a maintenance-free design, and pure lead construction with proprietary elements. The case material is PP (UL 94-HB); a flame-retardant version in 94-V0 material can be requested. The terminal is an I2 threaded lead alloy terminal accepting an M6 bolt, with terminal torque of 51.7±10.3 Kgf·cm, 44.9±9.0 Lbf·in, or 5.10±1.0 N·m.
In terms of dimensions, the battery length is 228.0±2.5 mm, width 138.4±1.5 mm, height 206.3±2.5 mm, and weight 17.80 kg (39.23 lb). For charging, at 25°C the float charge voltage is 13.5 to 13.8 Vdc/battery, and the equalizing charge voltage is 14.4 to 15.0 Vdc/battery. The nominal operating temperature is 25°C, the discharge temperature range is -15°C to 50°C, and the charge and storage temperature range is -15°C to 40°C.
In terms of self-discharge, self-discharge is less than 10% after 90 days of storage at 25°C, and the battery can be stored for up to 6 months at 25°C, requiring a full charge before use; if the storage temperature is above 25°C, it should be charged sooner. The battery is manufactured in accordance with IEC 60896-21/22:2004 and is UL1989 recognized (MH14533), suitable for float standby power applications.
