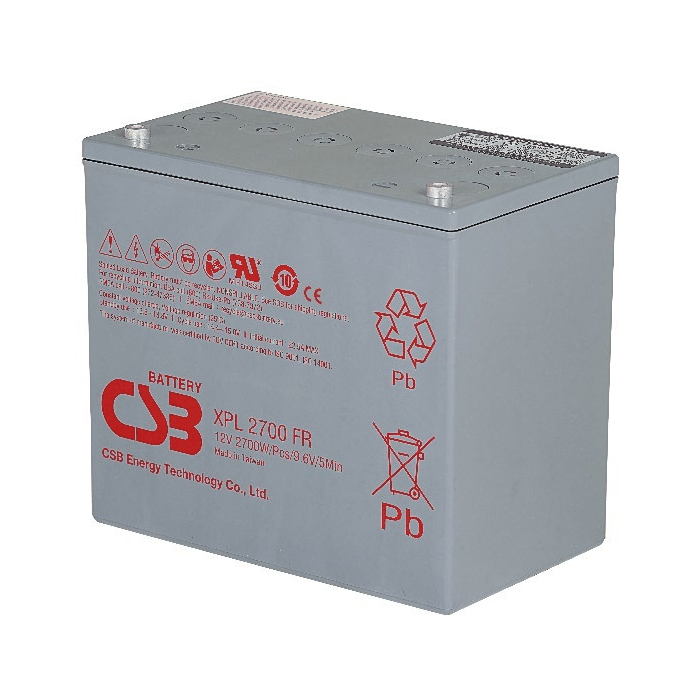

XPL2700 12V 2700W VRLA-AGM Battery

Product Features

Valve Regulated Lead Acid (VRLA) Battery
Maintenance-Free, Absorbent Glass Mat (AGM) Technology for Efficient Gas Recombination of up to 99%
Pure Lead Construction and Proprietary Elements
Designed for High-Rate UPS, Float Service Standby Power Applications
Built in Accordance with IEC 60896-21/22:2004 and UL1989 Recognized (MH14533)

Application Scenarios

Data center long-duration UPS backup
Large room long-time backup power
Industrial UPS long-duration discharge backup
Financial system long-duration backup
Telecom hub long-time backup power
Medical center long-duration UPS

Product parameters

Model：XPL2700
Voltage：12 Vdc
Nominal Capacity：2700W @5min-rate
Watts per Cell：719.17 (30-Sec 1.67 VPC @ 25°C)
Watts per Cell：463.17 (5-Min 1.67 VPC @ 25°)
Watts per Cell：252.67 (15-Min 1.67 VPC @ 25°)
Max. Charge Current：22.50 A
Max. Discharge Current：650 A
Short Circuit Current：1680 A
Internal Resistance：4.20 mΩ
Terminal Type：I2 thread lead alloy terminal to accept M6 bolt
Terminal Torque：51.7±10.3 Kgf·cm / 44.9±9.0 Lbf·in / 5.1±1.0 N·m
Container Material：PP (UL 94-HB) standard, flame-retardant (94-V0) available upon request
Weight：18.52 / 40.82 kg / lb.
Length (L)：228.0±2.5 / 8.98±0.10 mm / in
Width (W)：138.4±1.5 / 5.45±0.06 mm / in
Height (H)：206.3±2.5 / 8.12±0.10 mm / in
Design Life：Up to 10 years in standby service at 25°C; Eurobat (20°C): >12 years, Very Long Life
Float Charging Voltage：13.5 - 13.8 Vdc/battery
Equalizing Charging Voltage：14.4 - 15.0 Vdc/battery
Operating Temperature：discharge -15°C to 50°C; charge/storage -15°C to 40°C

Product details

The CSB XPL2700 belongs to the XPL series and is a 12V top-terminal valve-regulated sealed lead-acid battery using absorbed glass mat (AGM) technology, with gas recombination efficiency up to 99%, and pure lead construction. This series targets applications requiring large-capacity cells and long-duration standby power, with the official application area being data center uninterruptible power supplies. In terms of electrical parameters, the XPL2700 has a nominal voltage of 12 Vdc and a nominal capacity of 2700W @5min-rate, tested at 9.60V per unit, 25°C. Its power per cell is 719.17 W/cell at 30 seconds 1.67 VPC, 25°C, 463.17 W/cell at 5 minutes 1.67 VPC, 25°C, and 252.67 W/cell at 15 minutes 1.67 VPC, 25°C. The maximum charge current is 22.50 A, the maximum discharge current is 650 A, the short-circuit current is 1680 A, and the internal resistance is 4.20 mΩ. Regarding charging and temperature conditions, at 25°C the float charge voltage is 13.5 to 13.8 Vdc/battery, and the equalizing charge voltage is 14.4 to 15.0 Vdc/battery. The nominal operating temperature is 25°C, the discharge range is -15°C to 50°C, and the charge and storage range is -15°C to 40°C. Self-discharge is less than 10% after 90 days, and it can be stored at 25°C for up to 6 months, or up to 10 months with equalizing charge; it must be fully charged before use, and should be charged earlier if the storage temperature is above 25°C. Structurally, the XPL2700 terminal is an I2 threaded lead alloy terminal that accepts an M6 bolt, with a terminal torque of 51.7±10.3 Kgf∙cm, 44.9±9.0 Lbf∙in, or 5.1±1.0 N∙m. The case material is PP (UL 94-HB), and a flame-retardant 94-V0 version can also be provided upon request. The dimensions are length 228.0±2.5 mm, width 138.4±1.5 mm, height 206.3±2.5 mm, and weight 18.52 kg or 40.82 lb. This product is maintenance-free and designed for high-rate UPS and float standby power applications, manufactured in accordance with IEC 60896-21/22:2004, and recognized under UL1989 (MH14533). The design life can reach 10 years in float standby service at 25°C, and more than 12 years under Eurobat 20°C conditions, belonging to the long-life type.
