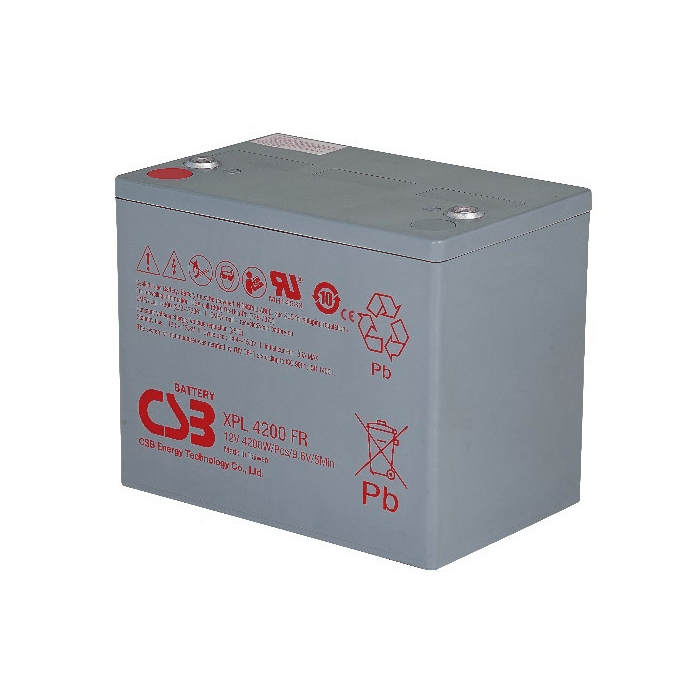

XPL4200 12V VRLA-AGM Battery

Product Features

Valve Regulated Lead Acid (VRLA) Battery
Maintenance-Free, Absorbent Glass Mat (AGM) Technology for Efficient Gas Recombination of up to 99%
Pure Lead Construction and Proprietary Elements
Designed for High-Rate UPS, Float Service Standby Power Applications
Built in Accordance with IEC 60896-21/22:2004 and UL1989 Recognized (MH14533)

Application Scenarios

Data center long-duration UPS backup
Large room long-time backup power
Industrial UPS long-duration discharge backup
Financial system long-duration backup
Telecom hub long-time backup power
Medical center long-duration UPS

Product parameters

Model：XPL4200
Voltage：12 Vdc
Nominal Capacity：4200W @5min-rate
Watts per Cell：979.83 (30-Sec 1.67 VPC @ 25°C)
Watts per Cell：660.50 (5-Min 1.67 VPC @ 25°)
Watts per Cell：370.17 (15-Min 1.67 VPC @ 25°)
Max. Charge Current：35.00 A
Max. Discharge Current：900 A
Short Circuit Current：2616 A
Internal Resistance：3.22 mΩ
Terminal Type：I2 thread lead alloy terminal to accept M6 bolt
Terminal Torque：51.7±10.3 Kgf·cm / 44.9±9.0 Lbf·in / 5.1±1.0 N·m
Container Material：PP (UL 94-HB) standard, flame-retardant (94-V0) available upon request
Weight：28.20 / 62.17 kg / lb.
Length (L)：261.0±2.5 / 10.28±0.10 mm / in
Width (W)：168.5±2.0 / 6.63±0.08 mm / in
Height (H)：213.5±2.5 / 8.41±0.10 mm / in
Design Life：Up to 10 years in standby service at 25°C; Eurobat (20°C): >12 years, Very Long Life
Float Charging Voltage：13.5 - 13.8 Vdc/battery
Equalizing Charging Voltage：14.4 - 15.0 Vdc/battery
Operating Temperature：discharge -15°C to 50°C; charge/storage -15°C to 40°C

Product details

The CSB XPL4200 is a 12V valve-regulated sealed lead-acid battery in the XPL series, using absorbed glass mat (AGM) technology with gas recombination efficiency of up to 99% and requiring no maintenance. Its pure lead construction and proprietary element design make it suitable for high-rate UPS and float standby power applications. The battery complies with IEC 60896-21/22:2004 and is recognized under UL1989 (MH14533). In terms of electrical parameters, the XPL4200 has a nominal capacity of 4200W @5min-rate (9.60V per PCS @ 25°C). Its W/cell power is 979.83 W/cell at 30 seconds (1.67 VPC @ 25°C), 660.50 W/cell at 5 minutes (1.67 VPC @ 25°C), and 370.17 W/cell at 15 minutes (1.67 VPC @ 25°C). Maximum charge current is 35.00 A, maximum discharge current is 900 A, short-circuit current is 2616 A, and internal resistance is 3.22 mΩ. The battery's terminal type is I2 thread lead alloy terminal to accept M6 bolt, with terminal torque of 51.7±10.3 Kgf∙cm / 44.9±9.0 Lbf∙in / 5.1±1.0 N∙m. The case material is PP (UL 94-HB), and a flame-retardant (94-V0) version is available on request. Weight is 28.20 kg (62.17 lb), and dimensions are length 261.0±2.5 mm, width 168.5±2.0 mm, height 213.5±2.5 mm. At 25°C, the XPL4200 has a design life of up to 10 years in standby service, meeting the Eurobat (20°C) >12 year Very Long Life standard. Operating temperature range: nominal 25°C, discharge -15°C to 50°C, charge/storage -15°C to 40°C. Float charge voltage is 13.5 - 13.8 Vdc/battery (25°C), and equalizing charge voltage is 14.4 - 15.0 Vdc/battery (25°C). Self-discharge is less than 10% after 90 days at 25°C, with storage up to 6 months; storage can be extended with an equalizing charge every 10 months; fully charge before use, and charge earlier if storage temperature exceeds 25°C. The XPL4200's official application area is data center UPS (uninterruptible power supply), and its large-capacity pure lead VRLA series is positioned for long-duration standby applications requiring large batteries.
