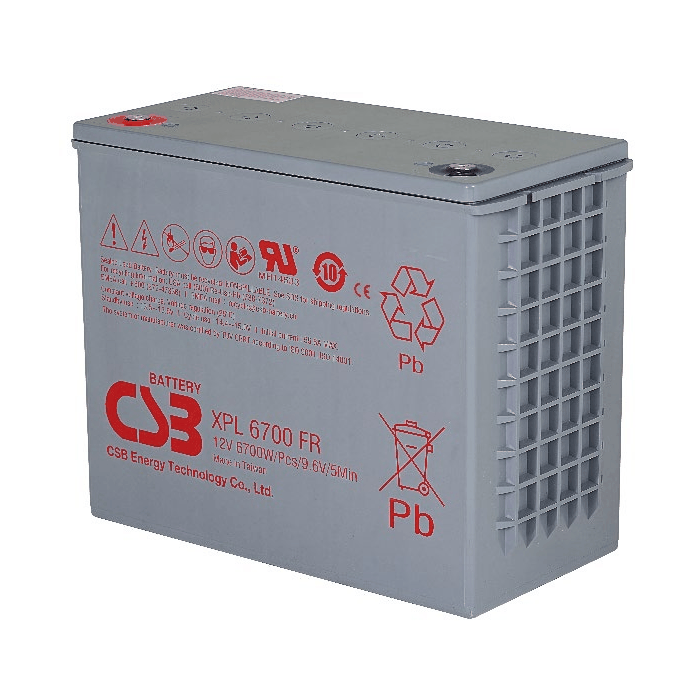

CSB XPL6700 12V Valve-Regulated Sealed Lead-Acid Battery
The CSB XPL6700 is a 12V valve-regulated sealed lead-acid battery in the XPL series, using pure lead and AGM technology with a 5-minute rate nominal capacity of 6700W, suitable for long-duration standby applications such as data center UPS.
Taobao store
WeChat procurement
Product Features
- Valve Regulated Lead Acid (VRLA) Battery
- Maintenance-Free, Absorbent Glass Mat (AGM) Technology for Efficient Gas Recombination of up to 99%
- Pure Lead Construction and Proprietary Elements
- Designed for High-Rate UPS, Float Service Standby Power Applications
- Built in Accordance with IEC 60896-21/22:2004 and UL1989 Recognized (MH14533)
Application Scenarios
- Data center long-duration UPS backup
- Large room long-time backup power
- Industrial UPS long-duration discharge backup
- Financial system long-duration backup
- Telecom hub long-time backup power
- Medical center long-duration UPS
Product parameters
- Model：XPL6700
- Voltage：12 Vdc
- Nominal Capacity：6700W @5min-rate
- Watts per Cell：1466.67 (30-Sec 1.67 VPC @ 25°C)
- Watts per Cell：1054.83 (5-Min 1.67 VPC @ 25°)
- Watts per Cell：651.83 (15-Min 1.67 VPC @ 25°)
- Max. Charge Current：55.80 A
- Max. Discharge Current：1350 A
- Short Circuit Current：4018 A
- Internal Resistance：2.33 mΩ
- Terminal Type：I2 thread lead alloy terminal to accept M6 bolt
- Terminal Torque：51.7±10.3 Kgf·cm / 44.9±9.0 Lbf·in / 5.1±1.0 N·m
- Container Material：PP (UL 94-HB) standard, flame-retardant (94-V0) available upon request
- Weight：47.90 / 105.57 kg / lb.
- Length (L)：343.0±2.5 / 13.50±0.10 mm / in
- Width (W)：170.0±2.0 / 6.69±0.0 mm / in
- Height (H)：275.7±2.5 / 10.85±0.10 mm / in
- Design Life：Up to 10 years in standby service at 25°C; Eurobat (20°C): >12 years, Very Long Life
- Float Charging Voltage：13.5 - 13.8 Vdc/battery
- Equalizing Charging Voltage：14.4 - 15.0 Vdc/battery
- Operating Temperature：discharge -15°C to 50°C; charge/storage -15°C to 40°C
Product details
The CSB XPL6700 is a 12V top terminal valve-regulated sealed lead-acid battery belonging to the XPL series. This series is positioned as a high-capacity pure lead VRLA product, aimed at long-duration standby applications requiring large-format single cells, with an official application area of data center uninterruptible power supplies. The battery uses a valve-regulated sealed lead-acid structure and absorbed glass mat technology, achieving up to 99% gas recombination efficiency and requiring no maintenance in daily use; it also uses a pure lead construction and proprietary formulation, designed for high-rate UPS and float standby power applications.
In terms of electrical parameters, the XPL6700 has a voltage of 12 Vdc and a nominal capacity of 6700W @5min-rate (9.60V per PCS @ 25°C). Single cell power is 1466.67 W/cell at 30 seconds 1.67 VPC, 1054.83 W/cell at 5 minutes 1.67 VPC, and 651.83 W/cell at 15 minutes 1.67 VPC. Maximum charge current is 55.80 A, maximum discharge current is 1350 A, short-circuit current is 4018 A, and internal resistance is 2.33 mΩ. Float charge voltage is 13.5 to 13.8 Vdc/battery (25°C), and equalizing charge voltage is 14.4 to 15.0 Vdc/battery (25°C).
Structurally, the XPL6700 has dimensions of length 343.0±2.5 mm, width 170.0±2.0 mm, height 275.7±2.5 mm, and weight 47.90 kg. The terminal is an I2 threaded lead alloy terminal, accepts an M6 bolt, and has a terminal torque of 51.7±10.3 Kgf∙cm, 44.9±9.0 Lbf∙in, or 5.1±1.0 N∙m. The case material is PP (UL 94-HB), and a flame-retardant (94-V0) version is available upon request.
Regarding operating temperature, the nominal temperature is 25°C, the discharge temperature range is -15°C to 50°C, and the charge and storage temperature range is -15°C to 40°C. Design life can reach 10 years under 25°C float service, and more than 12 years under the Eurobat (20°C) standard, placing it in the ultra-long life category. For self-discharge, it is less than 10% after 90 days at 25°C, can be stored for up to 6 months, and with equalizing charge can be stored for up to 10 months; it must be fully charged before use, and if storage temperature is above 25°C it should be charged sooner.
The XPL6700 is manufactured according to IEC 60896-21/22:2004 and is recognized under UL1989 (MH14533). Its high-capacity single cell, pure lead construction, and high-rate discharge capability make it suitable for float standby scenarios requiring long-duration backup power such as data center UPS, and when used at 25°C with the above float and equalizing charge voltages, it can deliver its design life and discharge performance.
