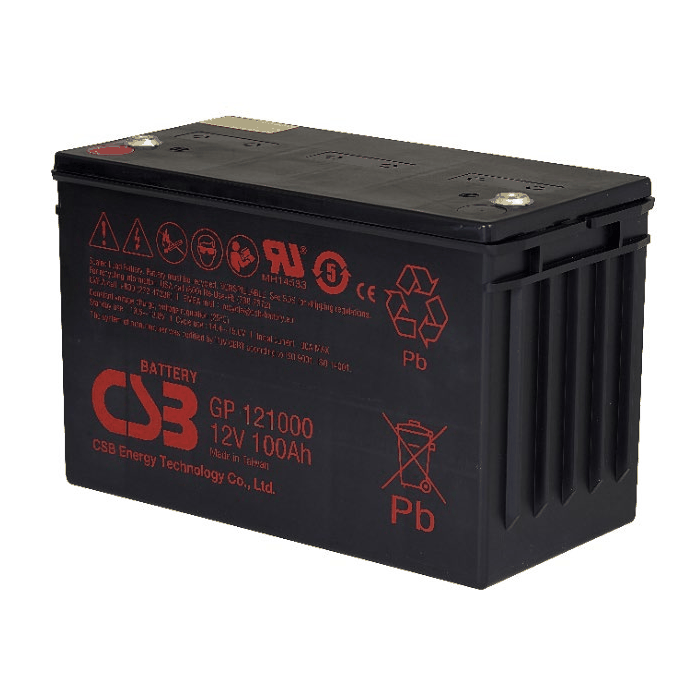

CSB GP121000 12V 100Ah Valve-Regulated Sealed Lead-Acid Battery
The CSB GP121000 is a GP series 12V 100Ah valve-regulated sealed lead-acid battery featuring AGM technology and a maintenance-free design, suitable for float standby power applications such as security, emergency lighting and medical equipment.
Taobao store
WeChat procurement
Product Features
- Valve Regulated Lead Acid (VRLA) Battery
- Maintenance-Free, Absorbent Glass Mat (AGM) Technology for Efficient Gas Recombination of up to 99%
- Pure Lead Construction and Proprietary Elements
- Designed for Float Service Standby Power Applications
- Built in Accordance with IEC 60896-21/22:2004 and UL1989 Recognized (MH14533)
Application Scenarios
- Security alarm panel backup power
- Emergency lighting fixtures and exit signs
- Medical monitors and infusion pumps backup
- Access control and building intercom systems
- Fire alarm and linkage control panels
- Small electronic instruments and test equipment
Product parameters
- Model：GP121000
- Voltage：12 Vdc
- Nominal Capacity：100 Ah @ 20 hr-rate
- Ah Capacity：94.4 (8-Hr 1.75 VPC @ 25°C)
- Ah Capacity：102 (20-Hr 1.75 VPC @ 25°C)
- Ah Capacity：92.0 (8-Hr 1.80 VPC @ 25°C)
- Max. Charge Current：30.00 A
- Max. Discharge Current：800 A
- Short Circuit Current：2323 A
- Internal Resistance：4.4 mΩ
- Terminal Type：I2 thread terminal to accept M6 bolt
- Terminal Torque：51.7±10.3 Kgf·cm / 44.9±9.0 Lbf·in / 5.10±1.0 N·m
- Container Material：PP (UL 94-HB) standard, flame-retardant (94-V0) available upon request
- Weight：30.6 / 67.44 kg / lb.
- Length (L)：343.0±2.5 / 13.50±0.10 mm / in
- Width (W)：170.0±2.0 / 6.69±0.08 mm / in
- Height (H)：216.9±2.5 / 8.54±0.10 mm / in
- Design Life：Up to 5 years in standby service at 25°C; Eurobat (20°C): 3-5 years, Standard Commercial
- Float Charging Voltage：13.5 - 13.8 Vdc/battery
- Equalizing Charging Voltage：14.4 - 15.0 Vdc/battery
- Operating Temperature：discharge -15°C to 50°C; charge/storage -15°C to 40°C
Product details
The CSB GP121000 belongs to the GP series of general purpose valve-regulated sealed lead-acid batteries, a product type offered as 6V and 12V top terminal VRLA-AGM. This model has a nominal voltage of 12 Vdc and a nominal capacity of 100 Ah at the 20-hour rate at 1.75 VPC, 25°C. The data also provides other capacity figures: 94.4 Ah at the 8-hour rate at 1.75 VPC, 102 Ah at the 20-hour rate at 1.75 VPC, and 92.0 Ah at the 8-hour rate at 1.80 VPC.
In terms of electrical characteristics, the GP121000 has a maximum charge current of 30.00 A, a maximum discharge current of 800 A, a short-circuit current of 2323 A, and an internal resistance of 4.4 mΩ. The float charge voltage is 13.5 to 13.8 Vdc/battery (25°C), and the equalizing charge voltage is 14.4 to 15.0 Vdc/battery (25°C). For self-discharge, capacity loss after 90 days of storage at 25°C is less than 10%, storage is possible for up to 6 months, and a full charge is required before use; if the storage temperature is above 25°C, charging should be performed sooner.
In construction, the battery uses a valve-regulated sealed lead-acid design with absorbed glass mat AGM technology, achieving up to 99% gas recombination, and is a maintenance-free type. The plates use a pure lead construction with proprietary formulation elements, designed for float standby power applications. The case material is PP (UL 94-HB), with a flame-retardant (94-V0) version available on request. The terminal type is I2, accepts an M6 bolt, and the terminal torque is 51.7±10.3 Kgf·cm, 44.9±9.0 Lbf·in or 5.10±1.0 N·m.
In terms of dimensions and weight, the GP121000 is 343.0±2.5 mm (13.50±0.10 in) long, 170.0±2.0 mm (6.69±0.08 in) wide, 216.9±2.5 mm (8.54±0.10 in) high, and weighs 30.6 kg (67.44 lb). Design life reaches 5 years in float standby service at 25°C, and 3 to 5 years per the Eurobat (20°C) standard for commercial use. For operating temperature, the nominal temperature is 25°C (77°F), discharge is -15°C to 50°C (5°F to 122°F), and charge and storage are -15°C to 40°C (5°F to 104°F).
This product is manufactured in accordance with IEC 60896-21/22:2004 and is recognized under UL1989 (MH14533). The GP series is officially positioned as a general purpose VRLA battery series for a variety of applications including security, emergency lighting and medical equipment. The GP121000 is suitable for applications requiring 12V high-capacity float standby power, and its maintenance-free AGM design and pure lead construction help maintain stable operation in standby power systems.
