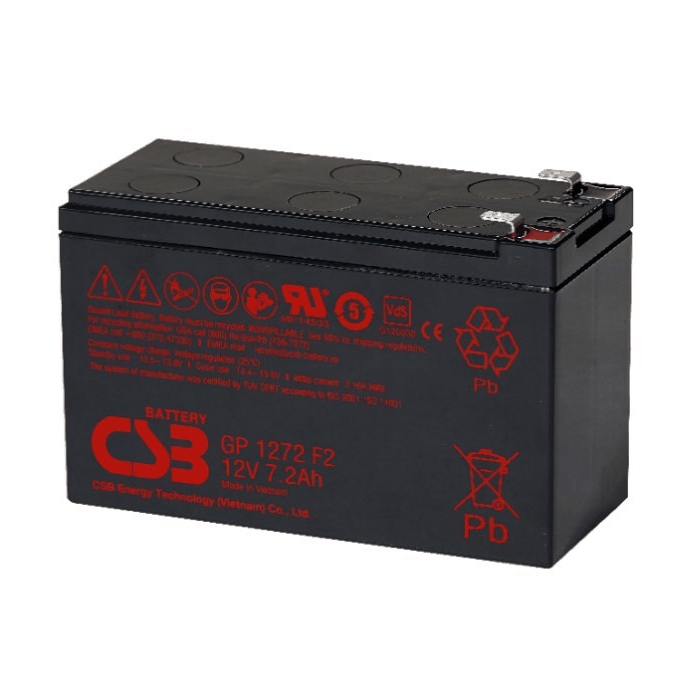

CSB GP1272 12V 7.2Ah Valve-Regulated Sealed Lead-Acid Battery
The CSB GP1272 is a GP series general purpose valve-regulated sealed lead-acid battery with 12Vdc voltage and 7.2Ah nominal capacity (20-hour rate), featuring AGM technology for float standby power applications such as security, emergency lighting and medical equipment.
Taobao store
WeChat procurement
Product Features
- Valve Regulated Lead Acid (VRLA) Battery
- Maintenance-Free, Absorbent Glass Mat (AGM) Technology for Efficient Gas Recombination of up to 99%
- Pure Lead Construction and Proprietary Elements
- Designed for Float Service Standby Power Applications
- Built in Accordance with IEC 61056-1/2:2012 and UL1989 Recognized (MH14533)
Application Scenarios
- Security alarm panel backup power
- Emergency lighting fixtures and exit signs
- Medical monitors and infusion pumps backup
- Access control and building intercom systems
- Fire alarm and linkage control panels
- Small electronic instruments and test equipment
Product parameters
- Model：GP1272
- Voltage：12 Vdc
- Nominal Capacity：7.2Ah @20hr-rate
- Ah Capacity：7.46 (8-Hr 1.75 VPC @ 25°C)
- Ah Capacity：8.24 (20-Hr 1.75 VPC @ 25°C)
- Ah Capacity：7.37 (8-Hr 1.80 VPC @ 25°C)
- Max. Charge Current：2.16 A
- Max. Discharge Current：130 A
- Short Circuit Current：276 A
- Internal Resistance：23.0 mΩ
- Terminal Type：F2 terminal (Faston Tab 250)
- Container Material：ABS (UL 94-HB) standard, flame-retardant (94-V0) available upon request
- Weight：2.40 / 5.29 kg / lb.
- Length (L)：150.9±2. / 5.94±0.08 mm / in
- Width (W)：64.8±1.0 / 2.55±0.04 mm / in
- Height (H)：98.6±1.0 / 3.88±0.04 mm / in
- Design Life：Up to 5 years in standby service at 25°C; Eurobat (20°C): 3-5 years, Standard Commercial
- Float Charging Voltage：13.5 - 13.8 Vdc/battery
- Equalizing Charging Voltage：14.4 - 15.0 Vdc/battery
- Operating Temperature：discharge -15°C to 50°C; charge/storage -15°C to 40°C
- Note：F1 terminal is available; Max Discharge Current = 100 A
Product details
The CSB GP1272 belongs to the GP series of general purpose valve-regulated sealed lead-acid batteries, with a product type of 6V and 12V top terminal VRLA-AGM. Its rated voltage is 12Vdc, and its nominal capacity is 7.2Ah (20-hour rate) at 25°C, 1.75VPC; at 25°C, 1.75VPC, the 8-hour rate is 7.46Ah and the 20-hour rate is 8.24Ah, and at 25°C, 1.80VPC the 8-hour rate is 7.37Ah. The battery uses a valve-regulated sealed construction and absorbed glass mat technology, achieving up to 99% gas recombination efficiency, and uses pure lead construction and proprietary formulation elements, making it suitable for float standby power applications.
In terms of electrical parameters, the GP1272 has a maximum charge current of 2.16A, a maximum discharge current of 130, a short-circuit current of 276A, and an internal resistance of 23.0mΩ. The float charge voltage is 13.5 to 13.8Vdc (25°C), and the equalizing charge voltage is 14.4 to 15.0Vdc (25°C). In terms of self-discharge, the remaining capacity after 90 days of storage at 25°C is higher than 90%, and it can be stored at 25°C for up to 6 months; it must be fully charged before use, and if the storage temperature is higher than 25°C it should be charged sooner.
In terms of dimensions and terminals, the battery length is 150.9±2.0mm, width is 64.8±1.0mm, height is 98.6±1.0mm, and weight is 2.40kg. The terminal type is F2 Faston Tab 250. The case material is ABS (UL 94-HB), and a flame-retardant (94-V0) version can be provided on request.
In terms of operating temperature, the nominal temperature is 25°C, the discharge temperature range is -15°C to 50°C, and the charge and storage temperature range is -15°C to 40°C. The design life can reach 5 years under float standby service at 25°C, and 3 to 5 years for Eurobat (20°C) standard commercial use. The product is manufactured in accordance with IEC 61056-1/2:2012 and is recognized by UL1989 (MH14533).
The GP series is officially positioned as a general purpose VRLA battery series, suitable for a variety of applications such as security, emergency lighting and medical equipment. With its maintenance-free design, AGM technology and float standby characteristics, the GP1272 is suitable for general scenarios requiring stable DC backup power.
