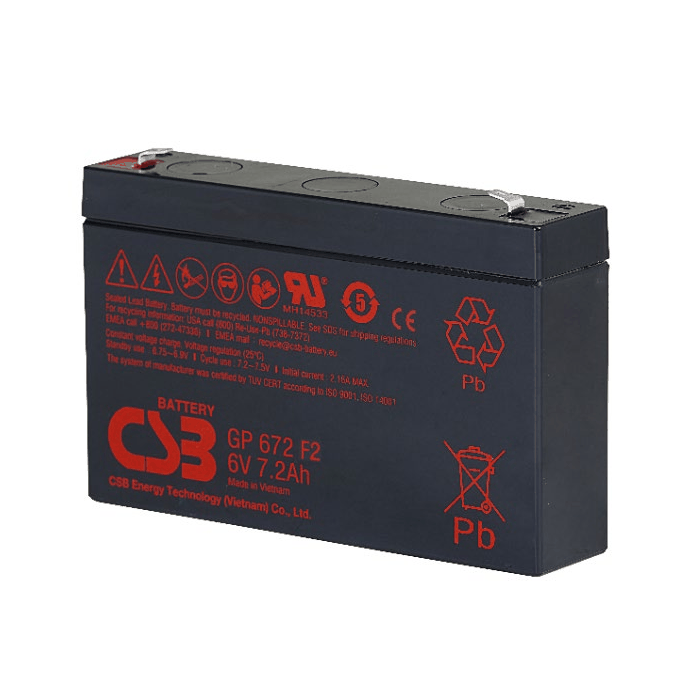

CSB GP672 6V 7.2Ah Valve-Regulated Sealed Lead-Acid Battery
The CSB GP672 is a 6V general purpose valve-regulated sealed lead-acid battery using AGM technology, with a nominal capacity of 7.2Ah (20hr), float charge voltage of 6.75-6.90Vdc, and a design float life of up to 5 years, suitable for standby power applications such as security, emergency lighting and medical equipment.
Taobao store
WeChat procurement
Product Features
- Valve Regulated Lead Acid (VRLA) Battery
- Maintenance-Free, Absorbent Glass Mat (AGM) Technology for Efficient Gas Recombination of up to 99%
- Pure Lead Construction and Proprietary Elements
- Designed for Float Service Standby Power Applications
- Built in Accordance with IEC 61056-1/2:2012 and UL1989 Recognized (MH14533)
Application Scenarios
- Security alarm panel backup power
- Emergency lighting fixtures and exit signs
- Medical monitors and infusion pumps backup
- Access control and building intercom systems
- Fire alarm and linkage control panels
- Small electronic instruments and test equipment
Product parameters
- Model：GP672
- Voltage：6 Vdc
- Nominal Capacity：7.2 Ah @20hr-rate
- Ah Capacity：7.04 (8-Hr 1.75 VPC @ 25°C)
- Ah Capacity：8.40 (20-Hr 1.75 VPC @ 25°C)
- Ah Capacity：6.96 (8-Hr 1.80 VPC @ 25°C)
- Max. Charge Current：2.16 A
- Max. Discharge Current：130 A
- Short Circuit Current：259 A
- Internal Resistance：12.3 mΩ
- Terminal Type：F2 terminal (Faston Tab 250)
- Container Material：ABS (UL 94-HB) standard, flame-retardant (94-V0) available upon request
- Weight：1.22 / 2.68 kg / lb.
- Length (L)：151.0±2.0 / 5.94±0.08 mm / in
- Width (W)：34.0±1.0 / 1.34±0.04 mm / in
- Height (H)：100.7±1.5 / 3.96±0.06 mm / in
- Design Life：Up to 5 years in standby service at 25°C; Eurobat (20°C): 3-5 years, Standard Commercial
- Float Charging Voltage：6.75 - 6.90 Vdc/battery
- Equalizing Charging Voltage：7.20 - 7.50 Vdc/battery
- Operating Temperature：discharge -15°C to 50°C; charge/storage -15°C to 40°C
- Note：F1 terminal is available; Max Discharge Current = 100 A
Product details
The CSB GP672 belongs to the GP series of general purpose valve-regulated sealed lead-acid batteries, using absorbed glass mat (AGM) technology with gas recombination efficiency of up to 99%, and is maintenance-free by design. Its nominal voltage is 6Vdc, nominal capacity is 7.2Ah (1.75VPC @25°C, 20hr-rate), with a capacity of 7.04Ah at the 8-hour rate at 1.75VPC, 8.40Ah at the 20-hour rate at 1.75VPC, and 6.96Ah at the 8-hour rate at 1.80VPC. The battery uses pure lead construction and a proprietary formula, suitable for float standby power applications.
In terms of electrical parameters, the GP672 has a maximum charge current of 2.16A, maximum discharge current of 130A, short-circuit current of 259A, and internal resistance of 12.3mΩ. Float charge voltage is 6.75 to 6.90Vdc/battery (25°C), and equalizing charge voltage is 7.20 to 7.50Vdc/battery (25°C). The battery has low self-discharge, with less than 10% self-discharge after 90 days of storage at 25°C, and can be stored for up to 6 months; it must be fully charged before use; if storage temperature is above 25°C, it should be charged sooner.
Structurally, the GP672 has dimensions of length 151.0±2.0mm, width 34.0±1.0mm, height 100.7±1.5mm, weight approximately 1.22kg, and terminals of the F2 Faston Tab 250 type. The case material is ABS (UL 94-HB), and a flame-retardant (94-V0) version is available upon request. Regarding operating temperature, the nominal temperature is 25°C, the discharge temperature range is -15°C to 50°C, and the charge and storage temperature range is -15°C to 40°C. The design float life is up to 5 years at 25°C, and 3 to 5 years under the Eurobat (20°C) standard.
The product is manufactured in accordance with IEC 61056-1/2:2012 and is recognized under UL1989 (MH14533). The GP series is officially positioned as general purpose VRLA batteries, suitable for a variety of applications including security, emergency lighting and medical equipment. With 6V voltage and 7.2Ah capacity, the GP672 provides a maintenance-free battery option for applications requiring float standby power.
